Overarm Universal Double Bale Grab
Overarm Universal Double Bale Grab
Key Features:
Fitted with electro-hydraulic valve for function control
Robust frame and overarm design
Double-acting hydraulic cylinder with check valve
Rotating tubes fitted to overarm
Removable clamping frame to allow fitting of optional tines for handling bales during the feeding season
Handles 4ft and 5ft round bales

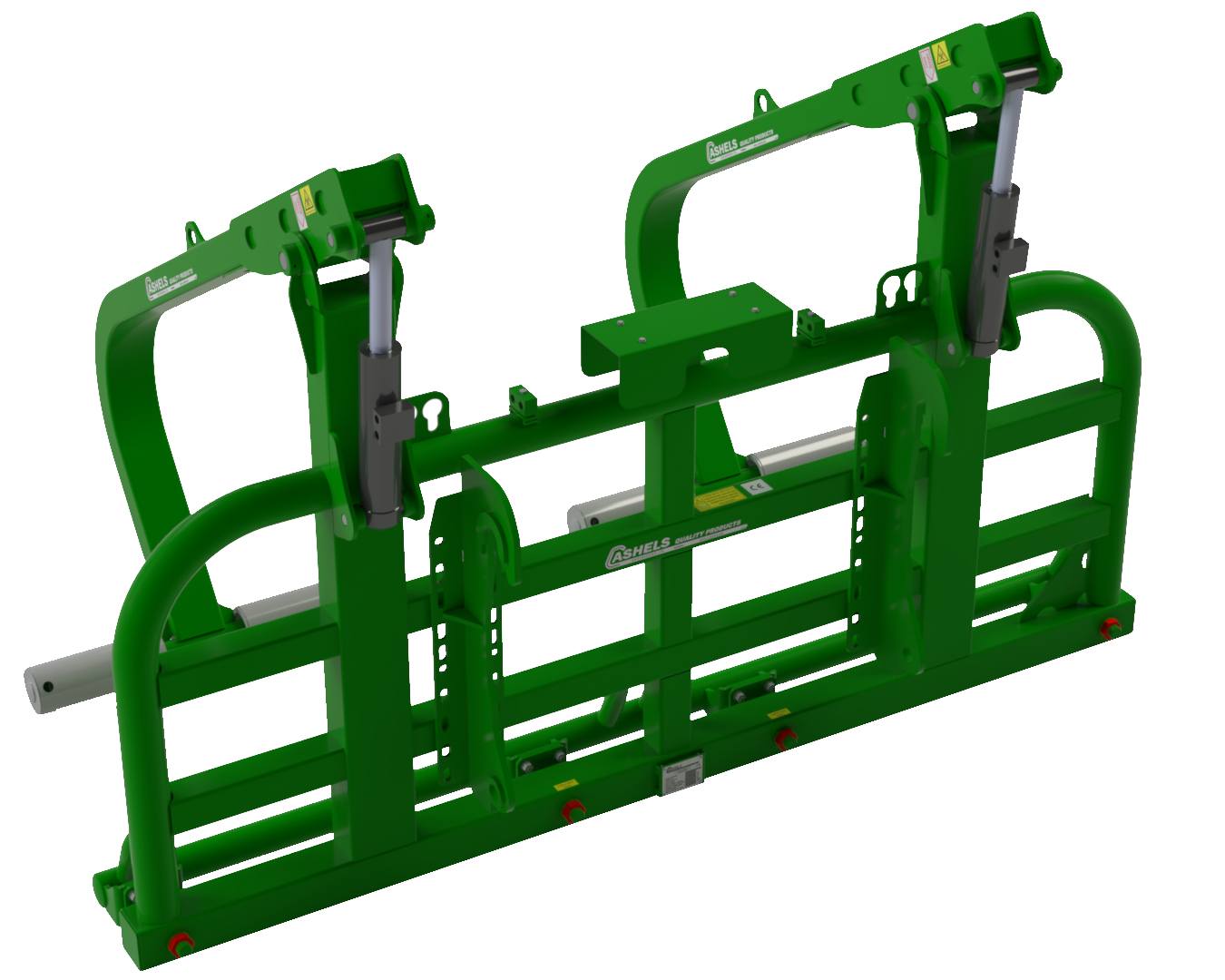

The Cashels Overarm Universal Double Bale Grab has been developed for increased efficiency when transporting and stacking both round and square bale of silage, straw and hay. The ovearms are fitted with rotating tubes for smooth handling of wrapped bales. It is designed for use on the front loader of larger horsepower tractors and industrial loaders.

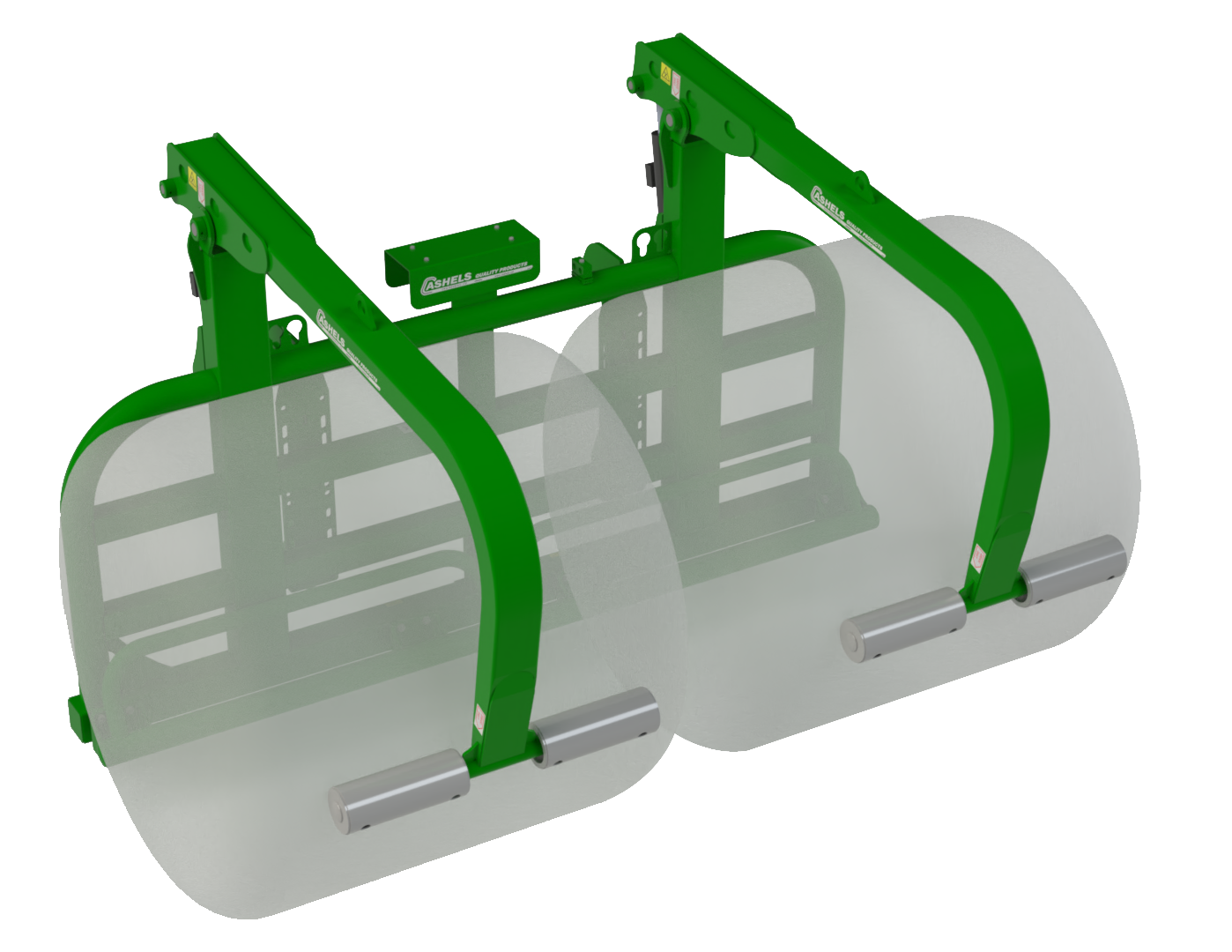

The overarm design allows bales to be handled from both directions, while ensuring maximum clamping force through the double-acting hydraulic cylinder.

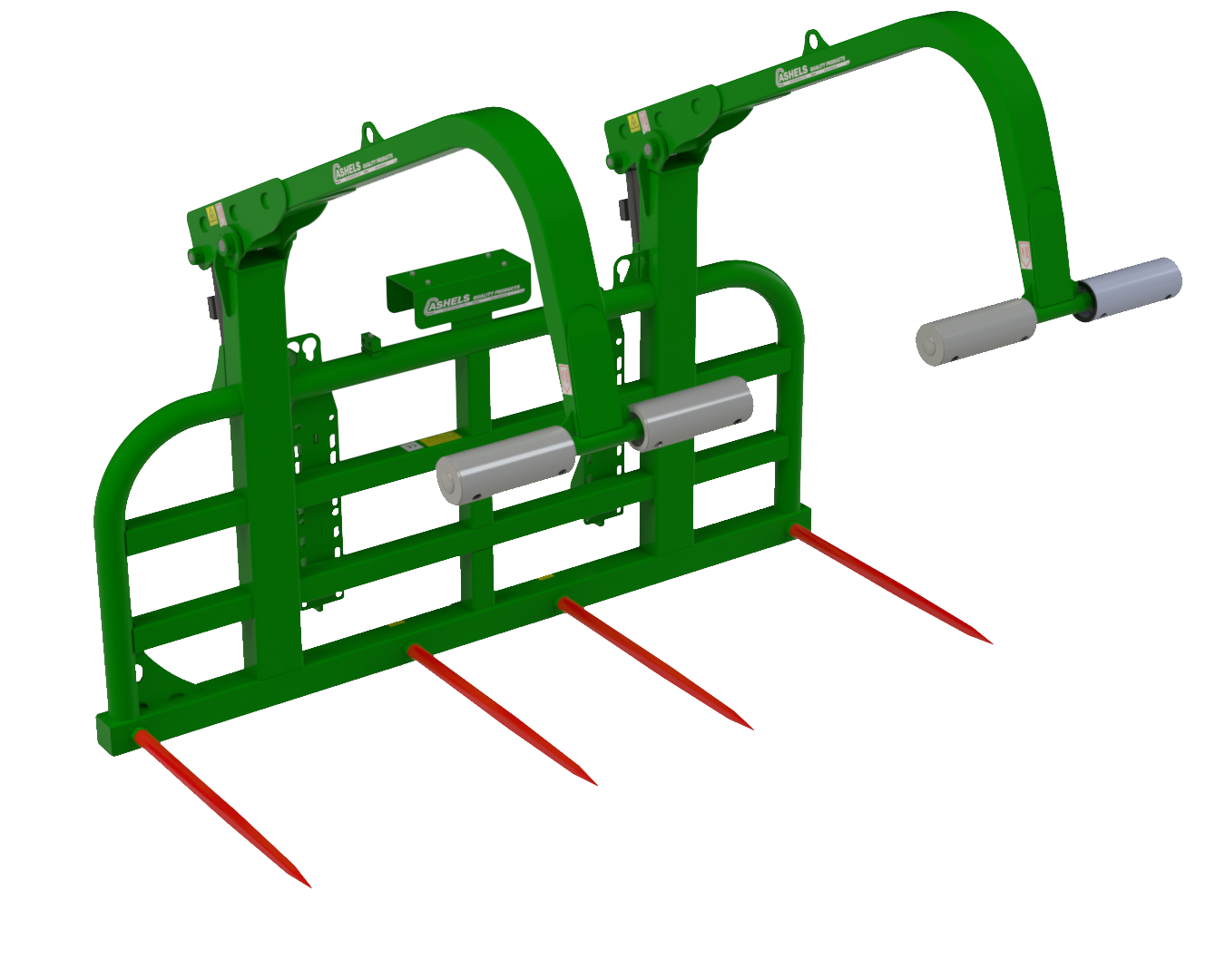

The unique design of Cashels Overarm Universal Double Bale Grab incorporates a removable clamping frame. This feature allows the option of fitting two CAT-2 stone fork tines for handling mature bales during the feeding season.
