4-Wheel Chassis (McHale Fusion)
4-Wheel Chassis (McHale Fusion)
Key Features:
Suits McHale Fusion 2, 3 & 4 (all variants)
Hydraulic brakes on the outer FAD stub axles (Standard units).
8-Stud outer braked stub axles (FAD).
6-Stud inner unbraked stub axles (FAD).
Chassis fabricated from fine grain steel throughout.
High quality paint finish to match the Fusion.
Stacking brackets for transport and shipping.
Centre wheels: TIANLI Flotation Radial 500/50R17

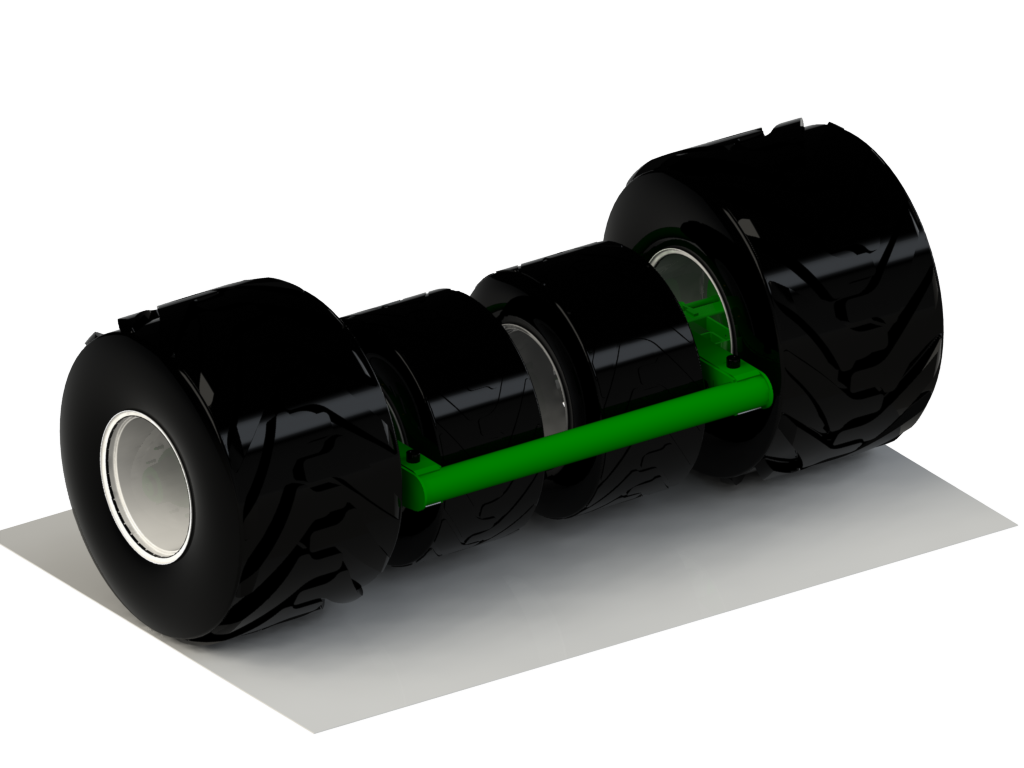

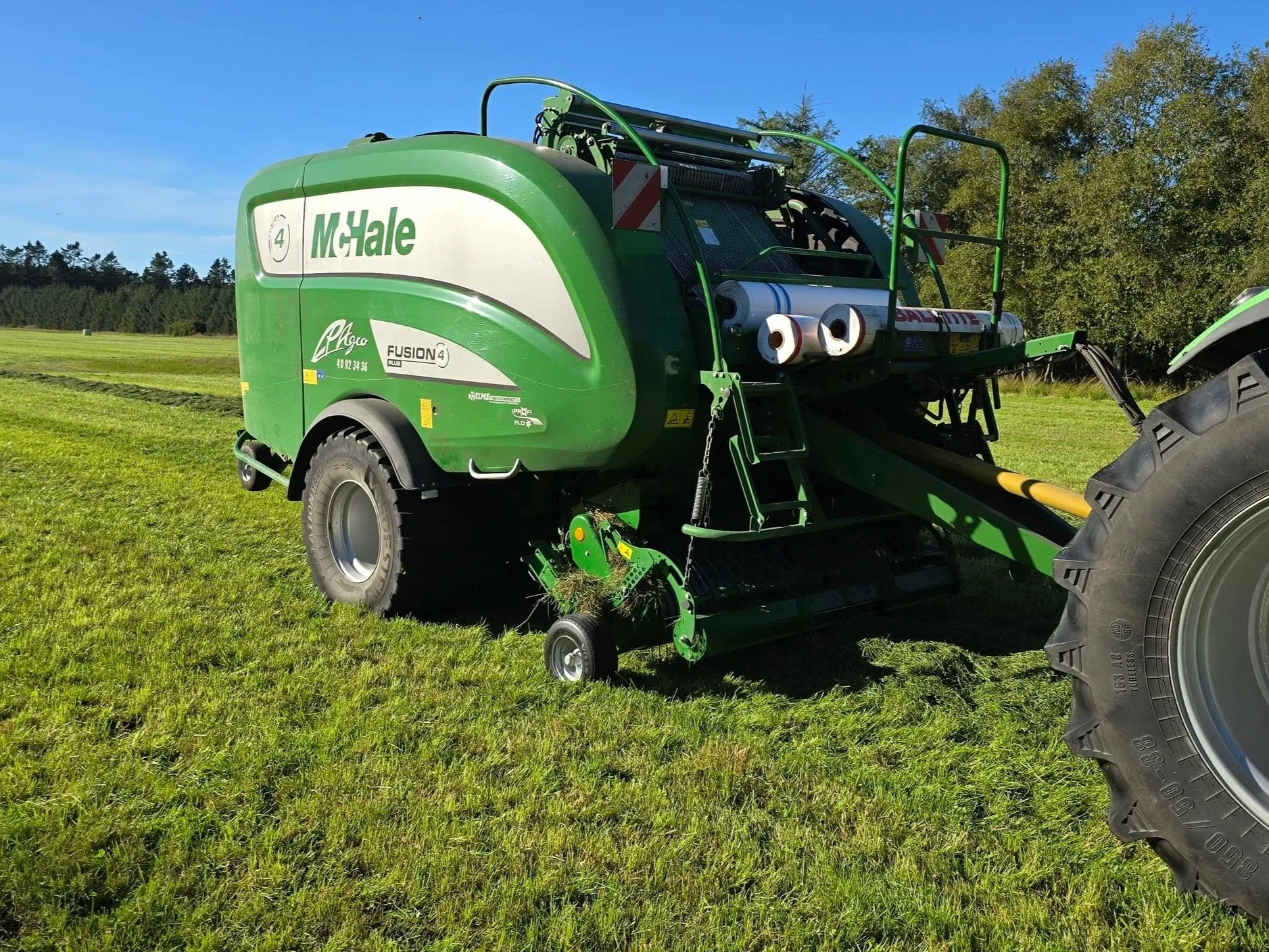

The 4-Wheel Chassis is designed to be retrofitted to the McHale Fusion Baler/Wrapper unit. The design is compatible with both the Fusion 2 and the newer Fusion 3 models.

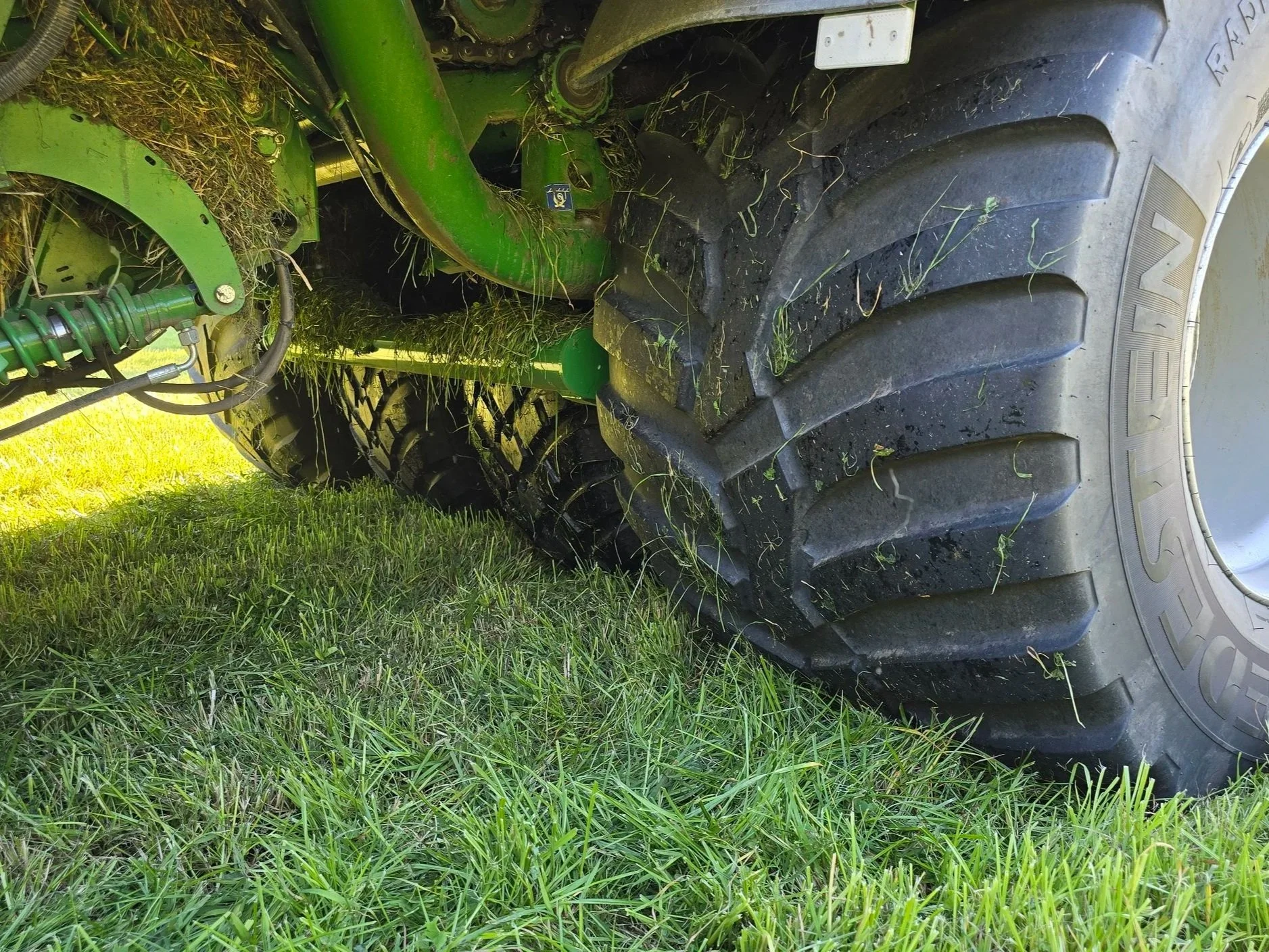

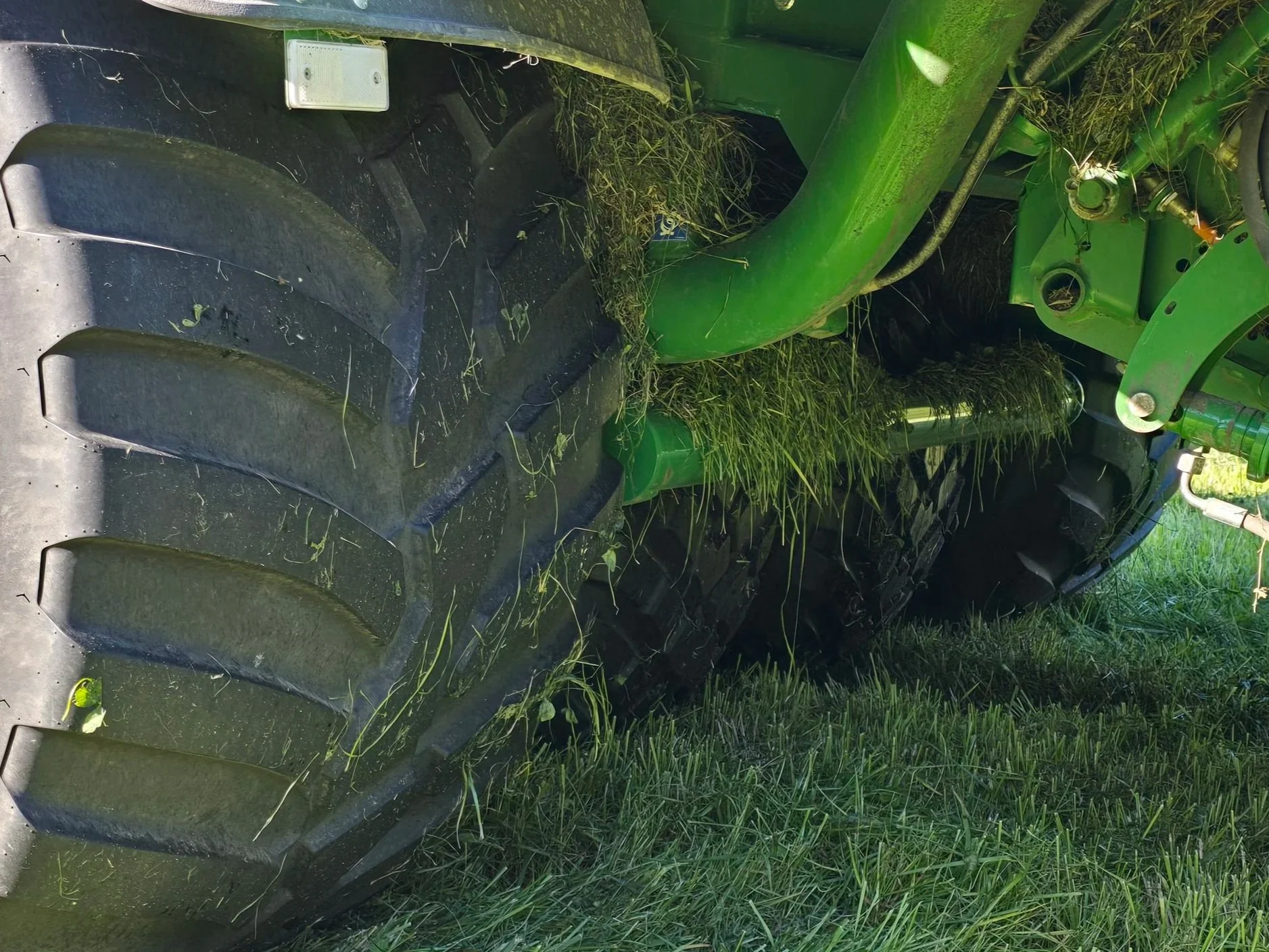

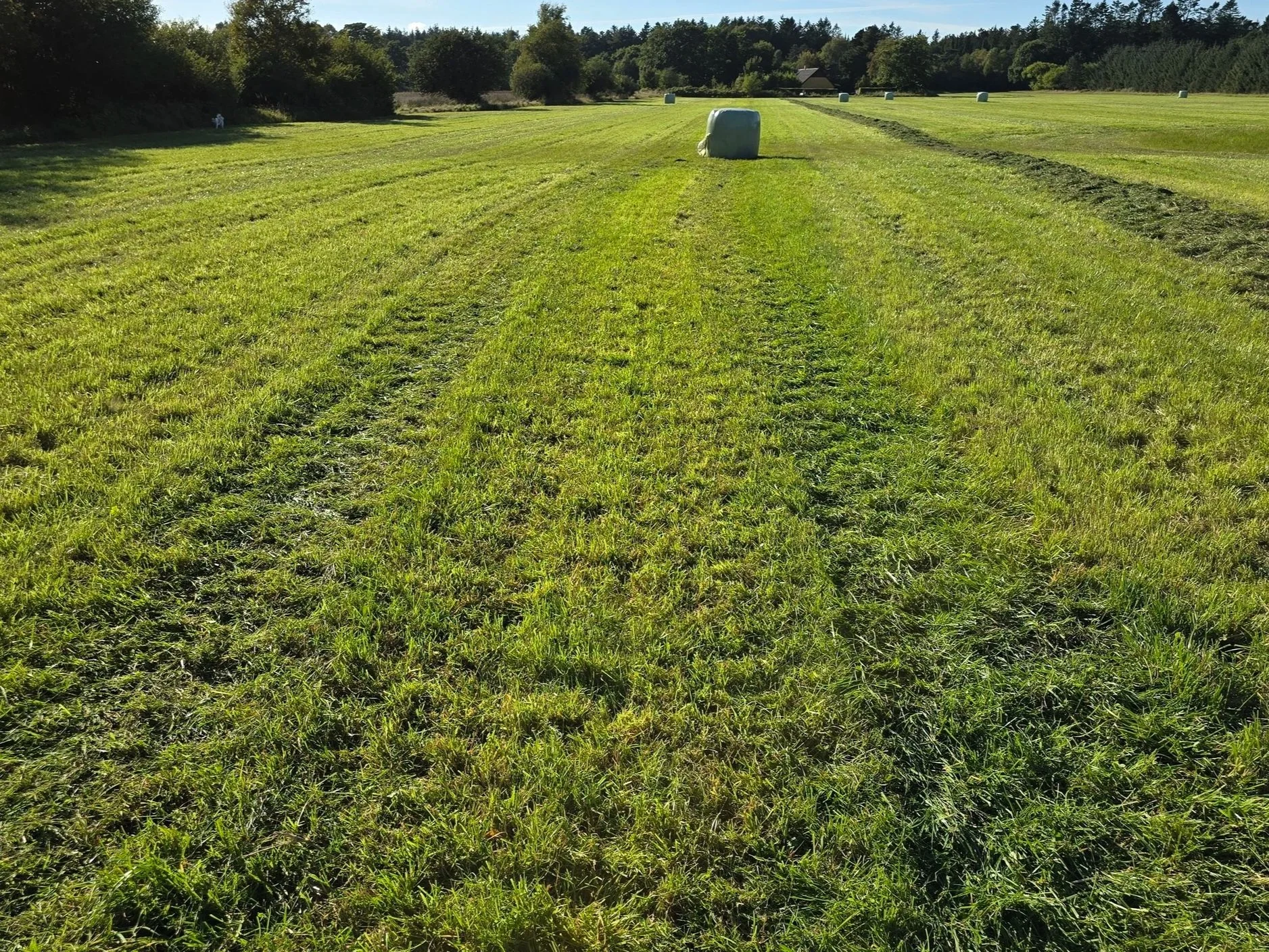

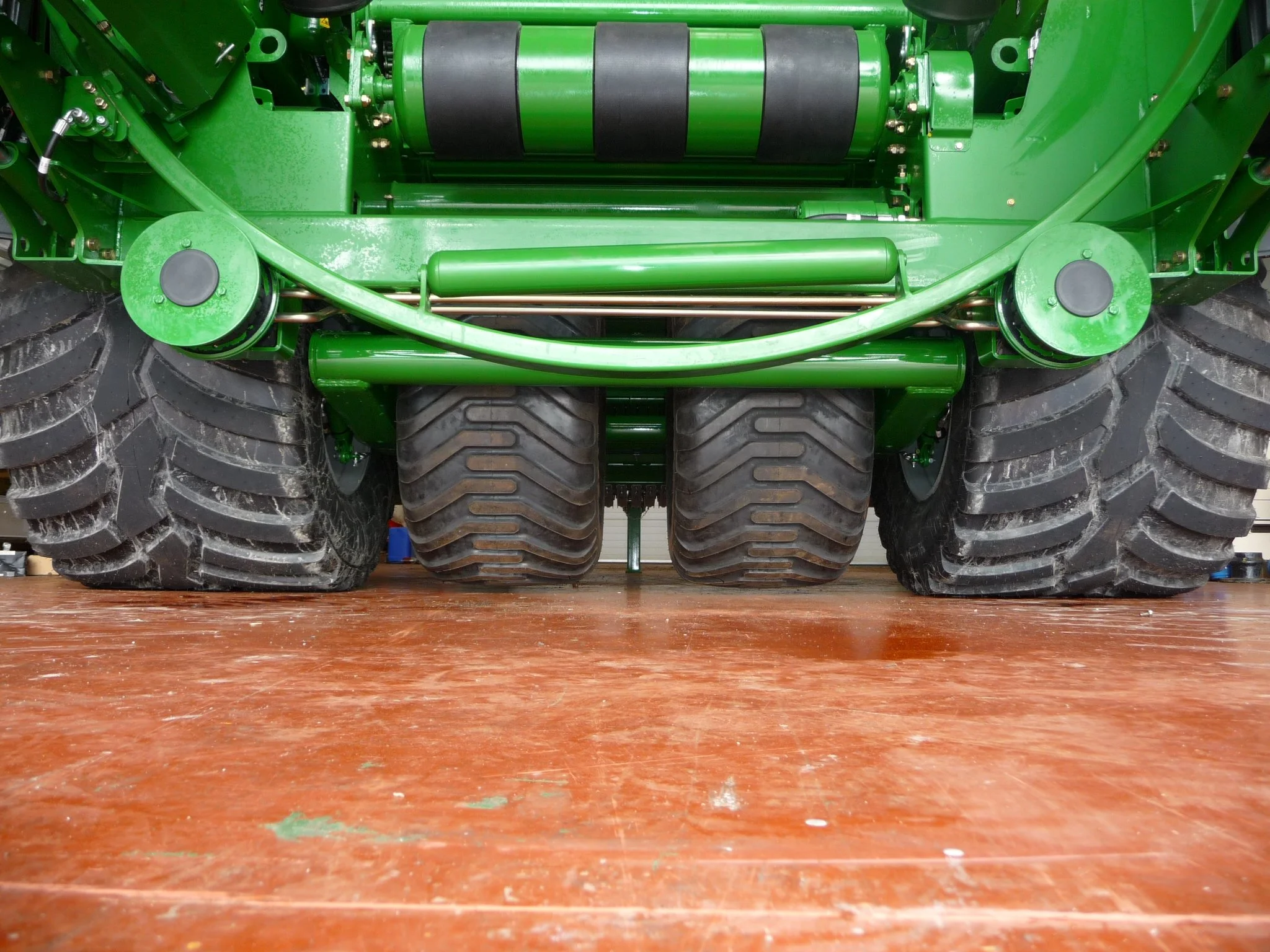

The main feature of the chassis is that it reduces the overall ground pressure by 40%+ when operating in wet conditions. On softer ground, the chassis also increases stability while minimising ground damage. The two centre wheels have 20mm ground clearance when the Fusion is traveling on road and when operating in normal conditions. The centre wheels only engage with the ground to perform their design function of reducing ground pressure of the Fusion in wet, soft ground conditions.
(video courtesy of Hendriks Den Horn, Holland)
